The combination of 30 years Design & Manufacturing experience of Automatic Swimming Pool Safety Covers.
Technical Specification

Fabric
Extremely strong 600gsm Polyester reinforced PVC. All high frequency (Hf) welded construction. Available in 16 different colours.

WINDING CONTROL
UNCOVER1NG - Unique Patented WINDING EXTRUSION ensures perfect retraction everytime.
COVERING - 316 Stainless Steel 7 x 19 winch cables. pulled around brass pulleys with Stainless Steel bearings, for longevity & reliability.

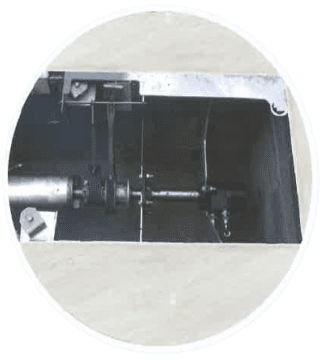

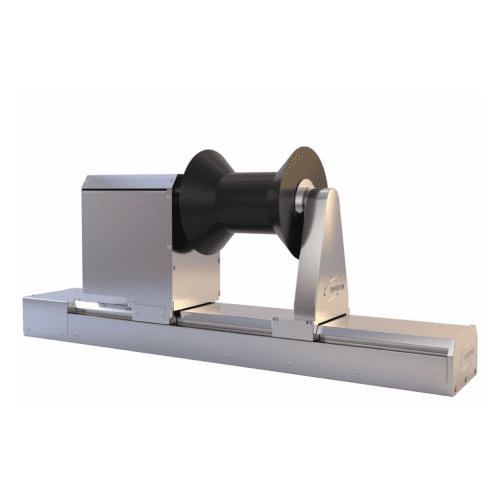

DRIVE

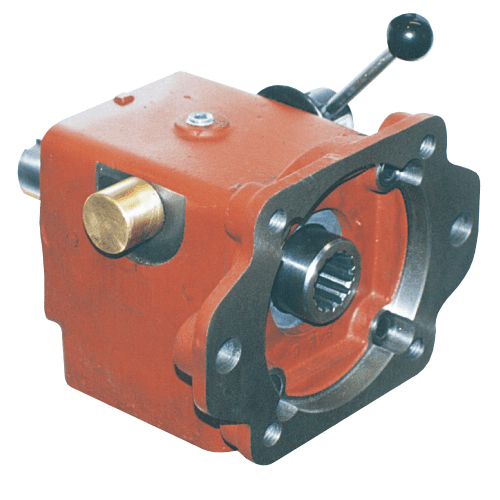

Hydraulic Motor, driving through double a ting mertial Dog Clutch, for Automatic Uncover & Cover selection.

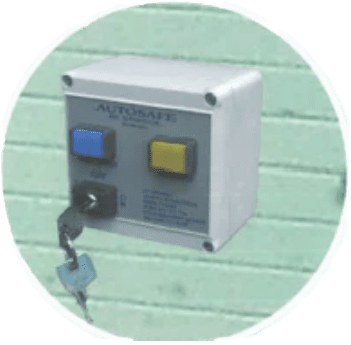

CONTROL
Key Switch Security. with Push & Hold actuation. Control circuit 12v DC Selv (Safoty Extra Low Voltage) circuit.

TRACK
Aluminium 6063, anodized and ·caled to AA25 ensuring stnmgth, longevity & durability

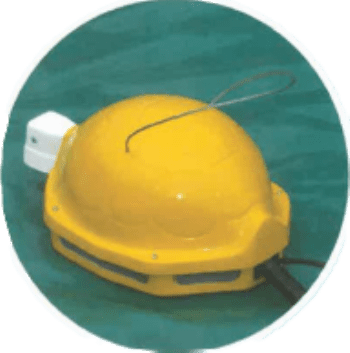

RAIN WATER DISPERSAL
HERMAN - Super Safe 12, OC selv system (Power Supply included in control circuit), deployed on the cm er when (ht; pool is fully covered, automatically removes rain as it falls.

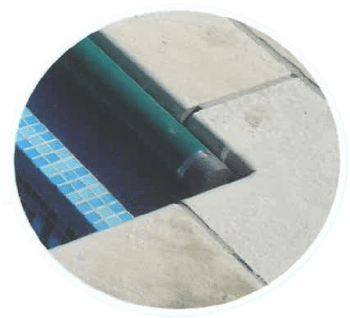

LEADING EDGE
Colour Coded. unique adjustable leading edge, for a tailored finish, allowing use of radius or square cornered pool & coping
Extras

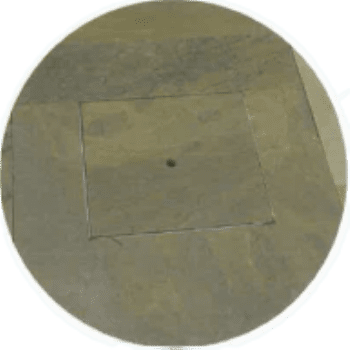

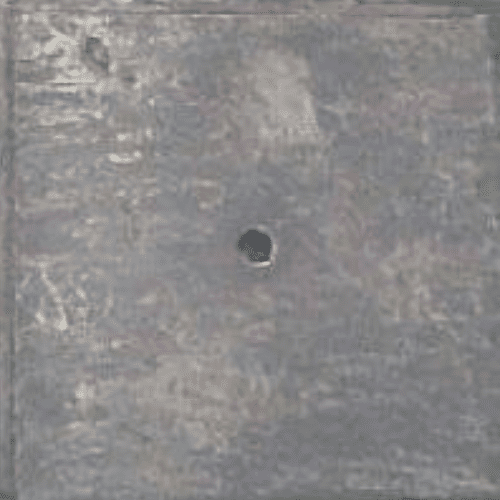

INSPECTION HATCHES
Composite Stainless Steel tapered hatches for ease ofremoval & close til for invisihility. Designed for Paving infill.

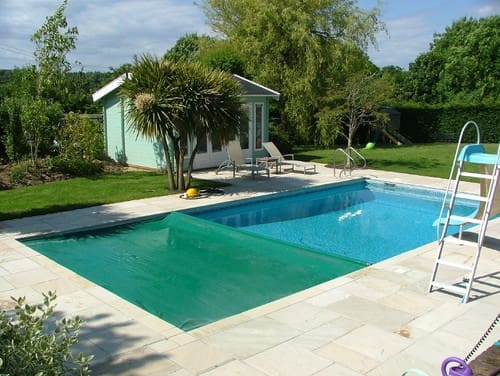

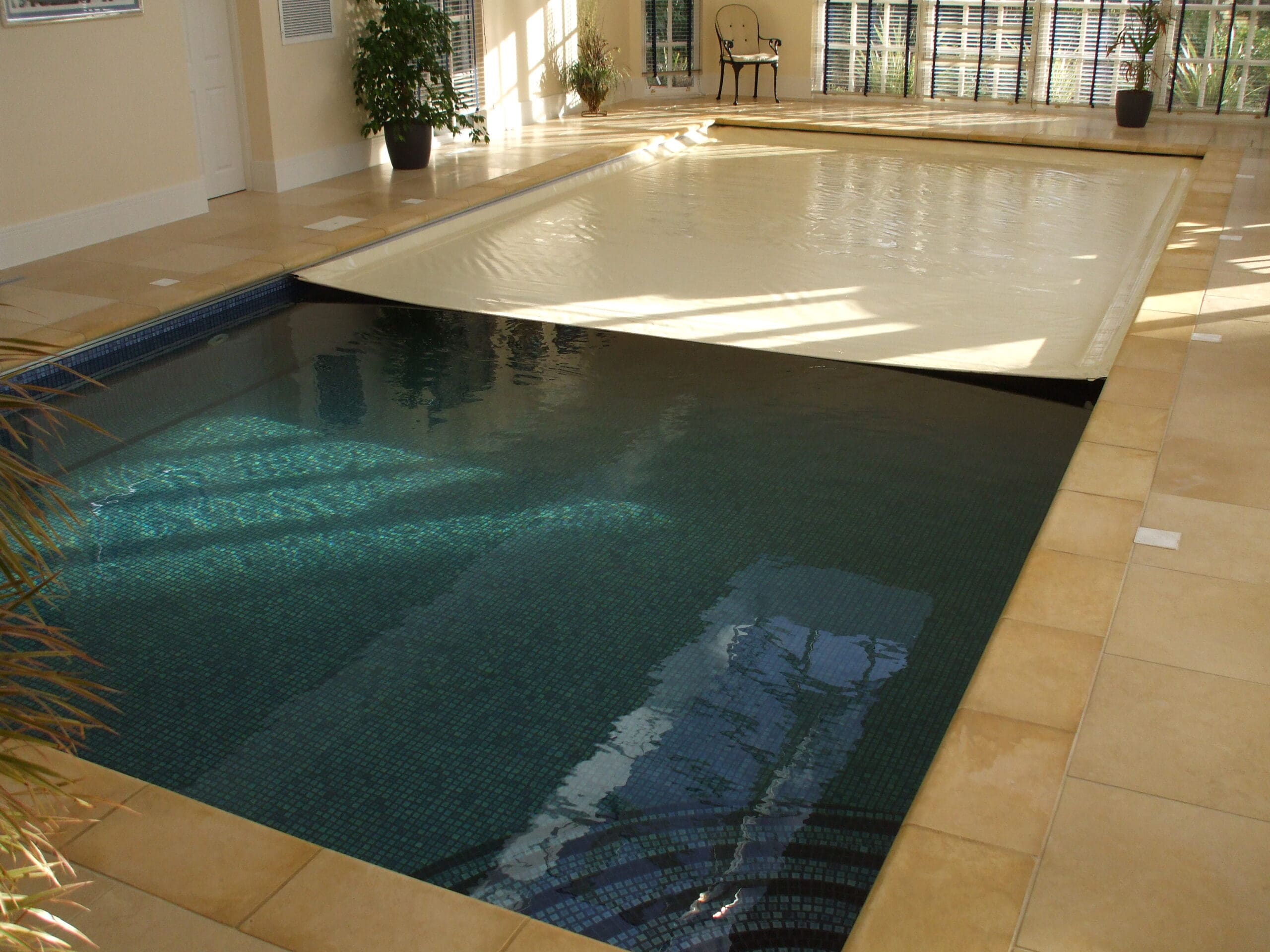

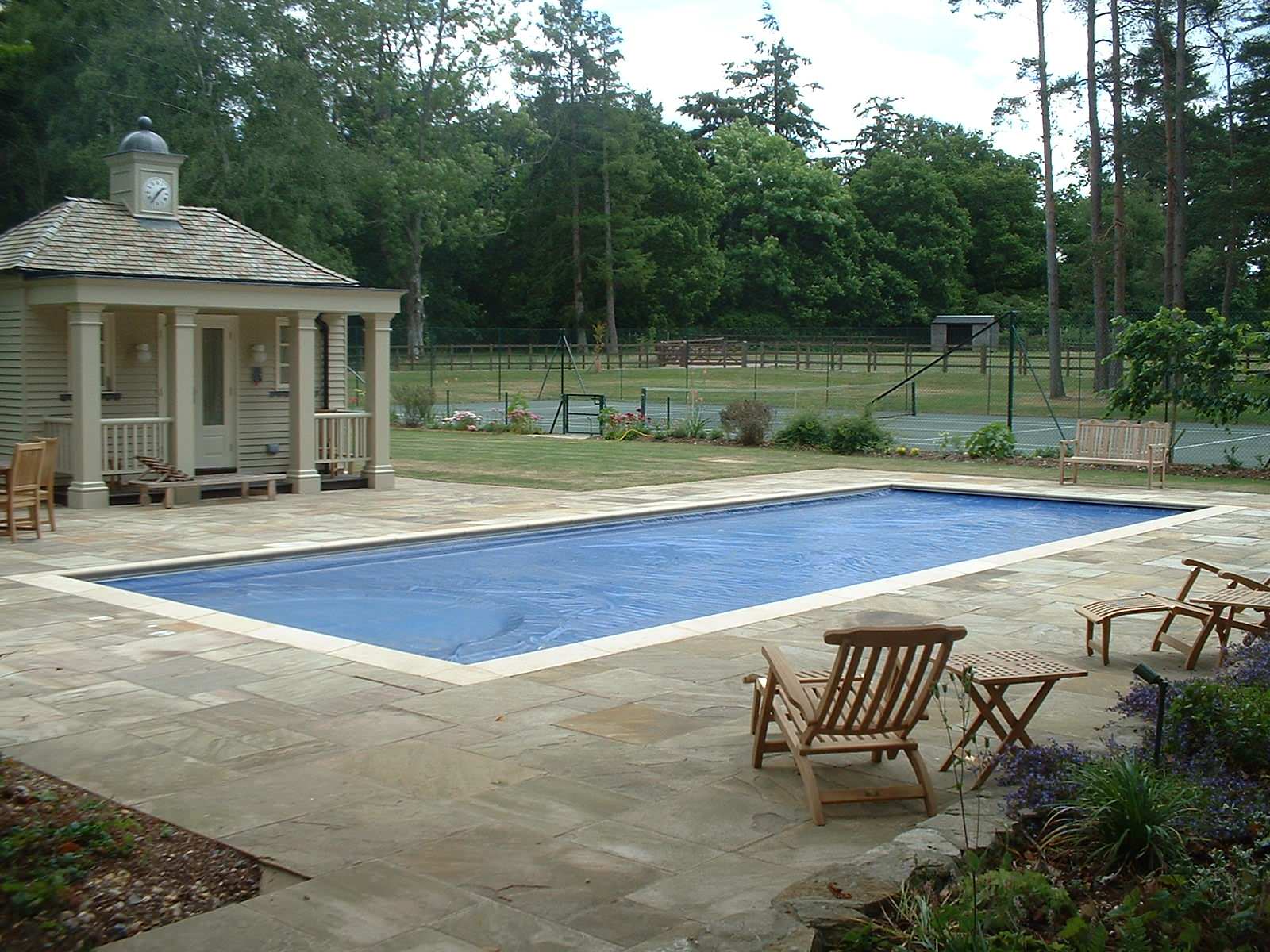

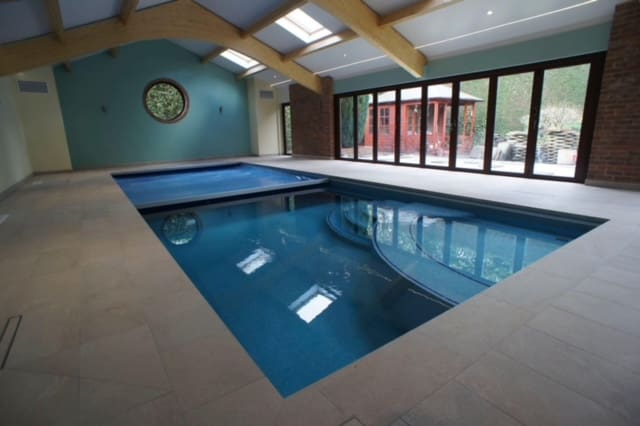

The Future of Under Coping Automatic Pool Covers

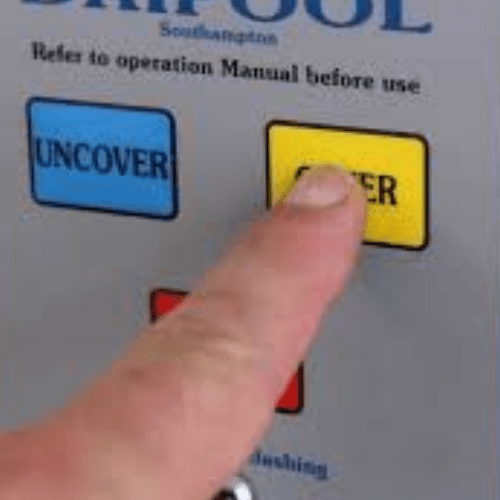

PUSH BUTTON operation panel with KEY SWITCH for SAFETY.

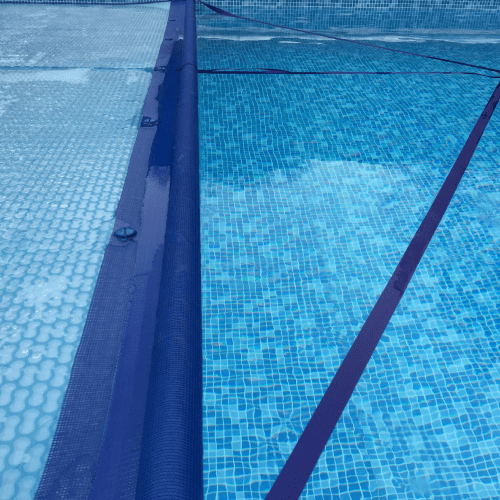

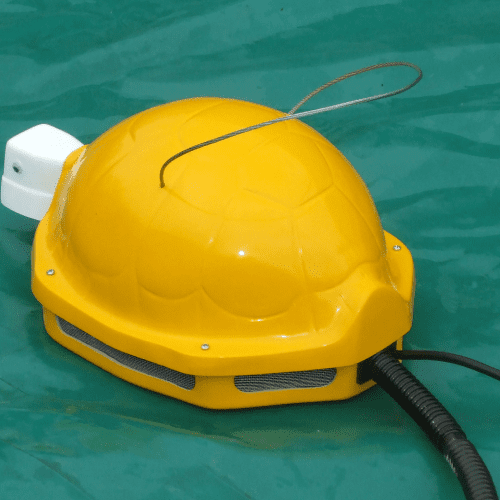

HERMAN SUPER SAFE 12v rainwater removal system. Prevents a build up of water on the cover. (25mm of water on a 5m x 10m cover weighs about 1.5 tonnes)

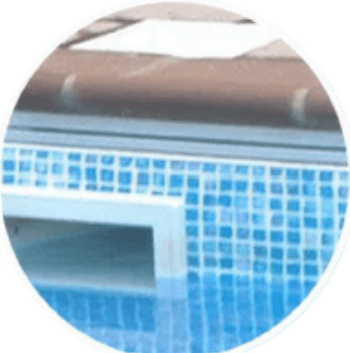

ANODISED Aluminium Track for STRENGTH and DURABILITY

COLOUR CODED LEADING FRONT EDGE provides a neat clean finish when covered or uncovered
